Overview
The Lucidity 26800 is a high-performance LED number plate / license plate lamp designed for
heavy-duty trailers, light-duty trailers, trucks and agricultural equipment. With 12–24V multi-voltage electronics and a fully
sealed IP67-rated housing, it delivers bright, even illumination of the registration plate while withstanding
vibration, moisture and harsh environments.
The lamp features a smart three-step quick installation concept, suitable for both horizontal and vertical mounting.
One lamp is sufficient for a 340 × 240 mm plate in horizontal installation, while vertical applications typically use
two lamps to cover a standard 520 × 120 mm plate. This makes the 26800 a flexible, OEM-grade solution for a wide range of
commercial vehicles and trailers.
Functions
- White LED number plate illumination
- Designed to fully illuminate standard EU registration plates
- Homologated as a license plate lamp (ECE)
Key Features
- 12–24V multi-voltage LED license plate lamp
- IP67 waterproof housing – resistant to water, mud and road spray
- ECE / EMC approved for European road use
- Surface-mount design with two-bolt fixing

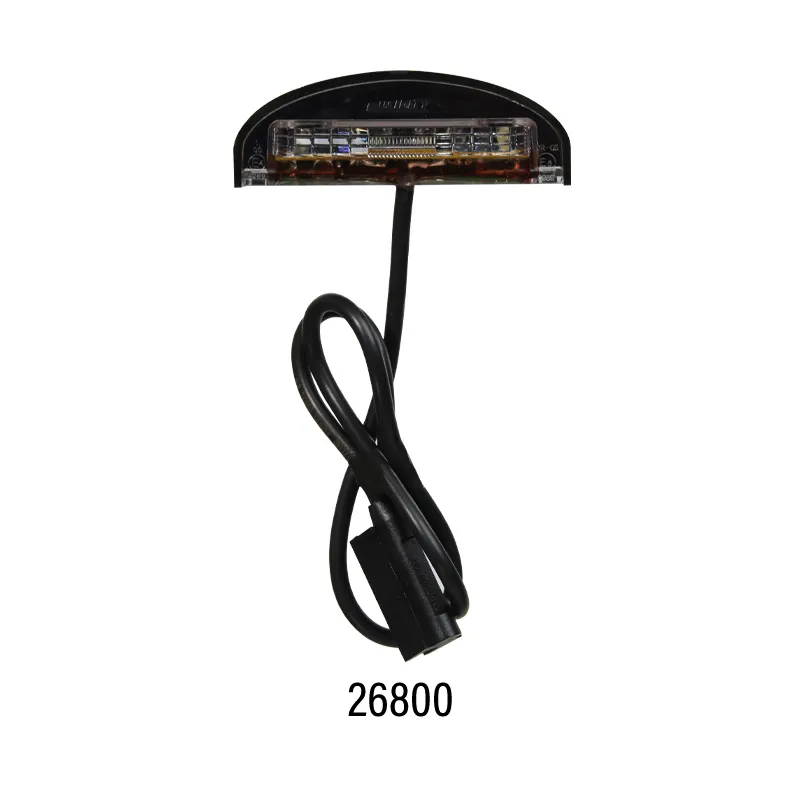

- Supplied with 500 mm cable or cable with connector (variant dependent)

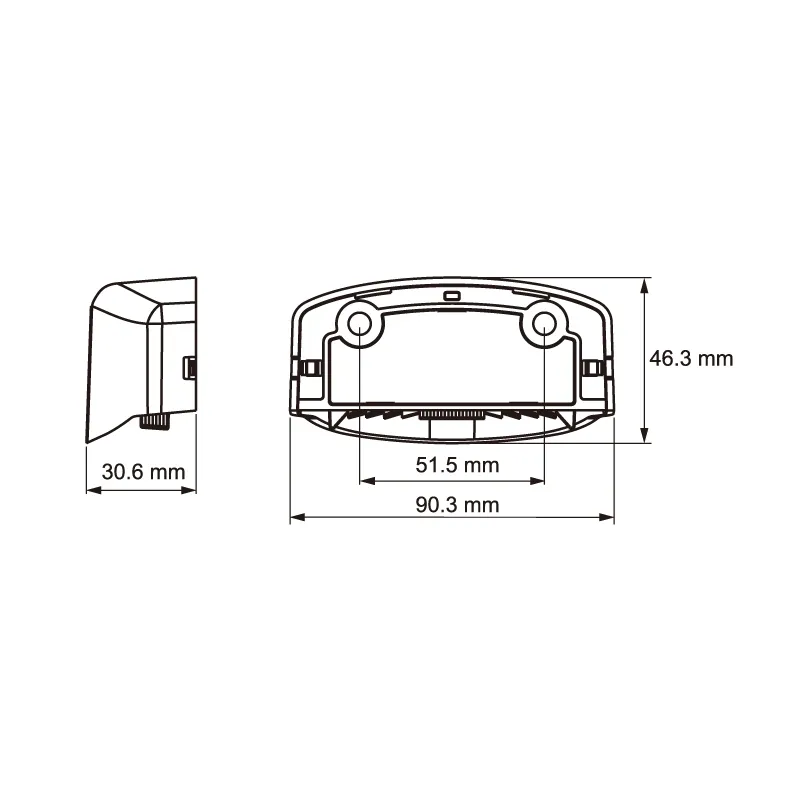

- Compact size – approx. 90 mm × 47 mm × 31 mm (variant dependent)
- Durable LED construction – resistant to vibration and impact
- Low current draw with sufficient luminous intensity for clear plate visibility
Suitable For
- Heavy-duty and light-duty trailers
- Trucks, HGVs and rigid bodies
- Plant and construction machinery
- Agricultural trailers and equipment
- Utility, recovery and service vehicles

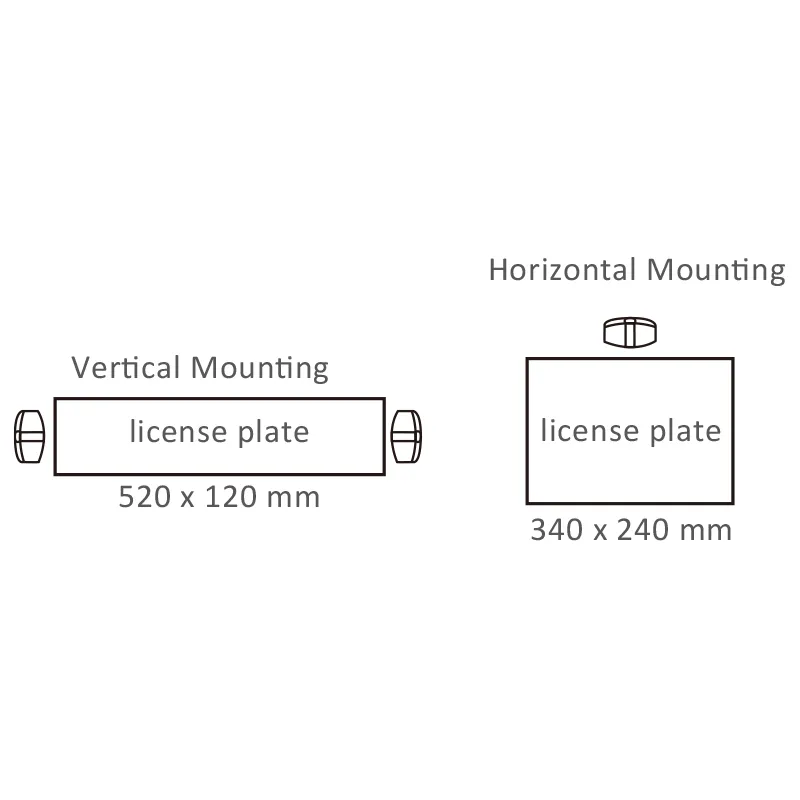

Mounting Guidance
- Horizontal mounting: one lamp above a 340 × 240 mm number plate
- Vertical mounting: typically two lamps, one on each side of a 520 × 120 mm plate
- Surface mount using two 5 mm fixing holes (centre spacing approx. 51.5 mm)
- Connect via 500 mm cable or cable with PRS/QS150 connector, depending on part number
